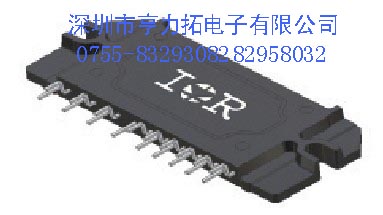

IRAM136-3063B 30A 600V with Internal Shunt Resistor 全新现货 深圳市亨力拓电子有限公司货源电话：0755-83293082 阮先生
IRAM136-3063B30A, 600V Integrated Power Module with internal shunt resistor targeted for Appliance Motor Drive applICations such as conditioning systems and compressor drives.大批量到货
Description
International Rectifiers IRAM136-3063B is a 30A, 600V Integrated Power Hybrid IC with Internal Shunt
Resistor for Appliance Motor Drives applications such air conditioning systems and compressor drivers as
well as for light industrial application. IRs technology offers an extremely compact, high performance AC
motor driver in a single isolated package to simplify design.
This advanced HIC is a combination of IRs low VCE(on) Punch-Through IGBT technology and the industry
benchmark 3-Phase high voltage, high speed driver in a fully isolated thermally enhanced package. A built-
in temperature monitor and over-current and over-temperature protections, along with the short-circuit
rated IGBTs and integrated under-voltage lockout function, deliver high level of protection and failsafe
operation. Using a new developed single in line package (SiP3) with heat spreader for the power die along
with full transfer mold structure minimizes PCB space and resolves isolation problems to heatsink.
Features
? Integrated Gate Drivers
? Temperature Monitor and Protection
? Overcurrent shutdown
? Low VCE(on) Advance Planar Super Rugged Technology
? Undervoltage lockout for all channels
? Matched propagation delay for all channels
? 5V Schmitt-triggered input logic
? Cross-conduction prevention logic
? Lower di/dt gate driver for better noise immunity
? Motor Power up to 3.3kW / 85~253 Vdc
? Fully Isolated Package, Isolation 2000VRMS min
